・Excellent thickness accuracy within ±10%
・As PDMS monolayer or with plate film can be used in combination.
・Laminated with PET separators (protective film) on both sides,
it is easy to handle, prevent contamination with foreign objects,
and has excellent dimensional stability during processing.
Products
CSCRIE products introduction
Hydrophobic PDMS Sheet (Ultra-thin type)
Focused on analysis and culture of live bacteria, cells and DNA.

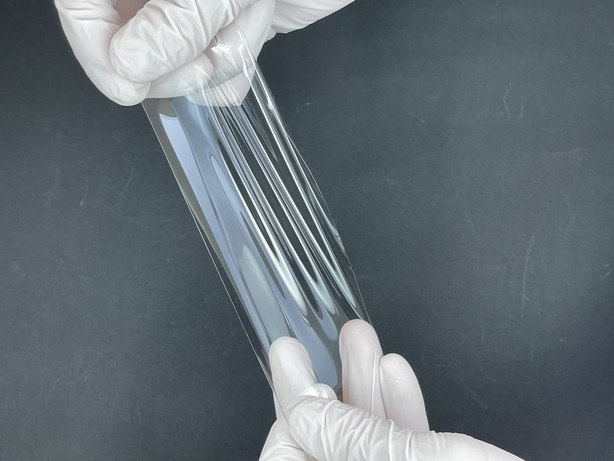

Ultra-thin and high precision hydrophobic PDMS (Polydimethylsiloxane) film.
Features of PDMS film (Ultra-thin type)
Usage of PDMS film (Ultra-thin type)
✓Field of analysis of live bacteria, cells and DNA, etc.
✓Chemical and biochemical fields such as culture.
✓Microfluidic devices, etc.
Application example
6-well microplate (bonded with PDMS film)
Microfluidic chip
Product video
Product details・Online order
| Product name | PDMS film (Ultra-thin type) |
|---|---|
| Materials | PDMS (Polydimethylsiloxane) |
| Size |
150 mm × 100 mm or 300 mm x 200 mm |
| Thickness |
50 μm, 100 μm, 150 μm and 200 μm |
| Hardness |
56 degrees |
| Tensile strength |
8.0 Mpa |
50 μm
| Product Code | Description | Q’ty | Price |
| CSCPD501 | PDMS film (Ultra-thin type), 50 µm | 150 mm x 100 mm | Contact us |
| CSCPD502 | PDMS film (Ultra-thin type), 50 µm | 300 mm x 200 mm | |
| CSCPD5015 | PDMS film (Ultra-thin type), 50 µm x 5 | 150 mm x 100 mm |
100 μm
| Product Code | Description | Q’ty | Price |
| CSCPD1001 | PDMS film (Ultra-thin type), 100 µm | 150 mm x 100 mm | Contact us |
| CSCPD1002 | PDMS film (Ultra-thin type), 100 µm | 300 mm x 200 mm | |
| CSCPD10015 | PDMS film (Ultra-thin type), 100 µm x 5 | 150 mm x 100 mm |
150 μm
| Product Code | Description | Q’ty | Price |
| CSCPD1501 | PDMS film (Ultra-thin type), 150 µm | 150 mm x 100 mm | Contact us |
| CSCPD1502 | PDMS film (Ultra-thin type), 150 µm | 300 mm x 200 mm | |
| CSCPD15015 | PDMS film (Ultra-thin type), 150 µm x 5 | 150 mm x 100 mm |
200 μm
| Product Code | Description | Q’ty | Price |
| CSCPD2001 | PDMS film (Ultra-thin type), 200 µm | 150 mm x 100 mm | Contact us |
| CSCPD2002 | PDMS film (Ultra-thin type), 200 µm | 300 mm x 200 mm | |
| CSCPD20015 | PDMS film (Ultra-thin type), 200 µm x 5 | 150 mm x 100 mm |
